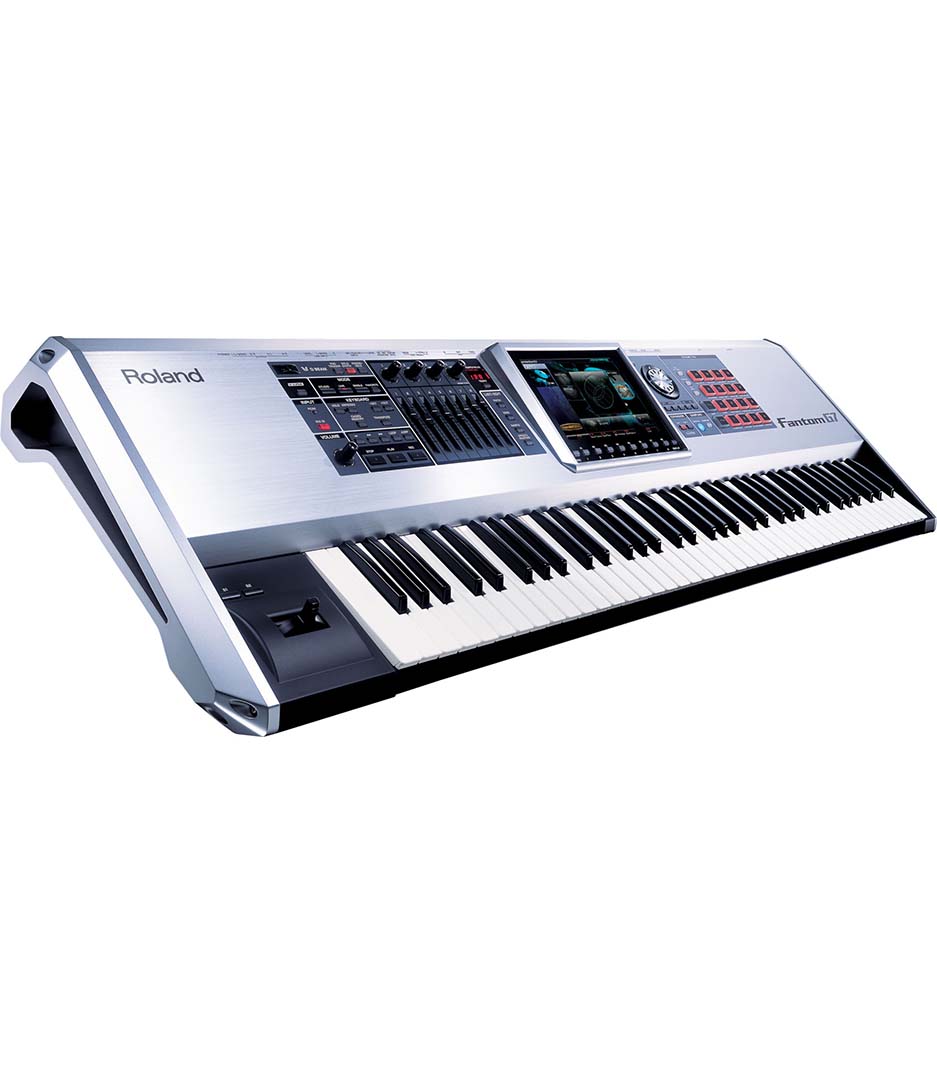

Roland Fantom G7
Introducing the most powerful and luxurious live workstation in Roland history. The Fantom-G is a dream instrument that redefines the boundaries of playability and creativity with its advanced sound engine, revolutionary ARX SuperNATURAL expansion bay, large-sized color LCD, powerful new audio/MIDI sequencer and more.
- Brand
- Category
- Model
Find Alternatives
Specification
| Keyboard | 76 keys, with velocity and channel aftertouch |
| Sound Generator Section | Mamimum Polyphony - 128 voices, shared with the sampling section Parts - 16 parts (Internal) + 16 parts (External) + 2 parts (ARX) + 24 parts (Audio Track) Wave Memory - 256MB (16-bit linear equivalent) Waveforms - 2,230 |
| Effects | Patch Multi-effects (PFX) - max. 16 units (76 types) Multi-effects (MFX) - max. 2 units (78 types) Chorus - 1 unit (3 types) Reverb - 1 unit (10 types) Input effects - 1 unit (6 types) Mastering effects - 1 unit (3-band compressor) |
| Sampling Section | Data Format - 16-bit linear, .WAV or .AIFF Sampling Frequency - 44.1kHz Maximum Sampling Time - approx. 360 sec, mono/180 sec, stereo approx. 108 min, mono/54 min, stereo |
| Sequencer | Tracks - MIDI tracks - max. 128 Audio tracks - max. 24 Tempo track - 1 Beat track - 1 Resolution - 480 TPQN Tempo - 5.00 to 300.00 Songs - 50 Phrases - 2,000 Notes Capacity - approx. 1,000,000 notes |
| Others | Arpeggiater - 128 Arpeggio Sets - 128 RPS Sets - 32 Rhythm Pattern Sets - 32 Chord Memory - 128 Chord Memory Sets - 128 Display - Graphic Type 8.5", Wide VGA (800 x 480 dots) backlit LCD (Color) Pads - 16 pads |
| Controllers | Pitch Bend/Modulation Lever Control Knob x 4 Control Slider x 8 Assignable Switch x 2 D Beam Controller |
| Connectors | Mic/Guitar Input Jacks - 1/4 inch phone type/XLR type (Phantom power) (Hi-Z) Headphones Jack - Stereo 1/4 inch phone type A (MIX)Output Jacks (L/MONO, R) - 1/4 inch TRS phone type B Output Jacks (L, R) - 1/4 inch phone type |
Input Jacks (L/MONO/MIC, R) - 1/4 inch phone type Pedal Jacks - Hold Pedal Jack (Half Pedal recognition) MIDI Connectors - IN/OUT/THRU USB Connectors- USB Computer Connector Digital Audio Interface- COAXIAL INPUT/OUTPUT AC Inlet |
