Roland Fantom X7

Roland Fantom X7

The Fantom-X Series is the flagship of the Roland workstation family, offering musicians nearly 1GB of wave memory when fully expanded, and 128-voice performance. At the top of the vast soundset is Roland's finest 88-key split stereo-sampled piano, with each note individually sampled at multiple velocities. In addition, the Fantom-X provides room for four SRX expansion boards, so users can customize their soundsets to their specific needs and stylistic preferences.

The Fantom-X Series is the first line of workstation keyboards with a color LCD screen. Combined with an inviting icon-driven user interface, the Fantom-X has been globally heralded as the most powerful-yet-friendly workstation on the market.

Brand
Category
Model

Nord Stage 2 HA76

Yamaha Motif XF 7

Yamaha Motif XS 7

Yamaha Montage 7

Korg PA4X ORT

Korg Triton Extreme 76

Korg Triton Pro 76

Keyboard	76 keys (with velocity and channel aftertouch)
Sound Generator Section	Maximum Polyphony - 128 voices Multitimbral Parts - 16 Parts Standard Wave Memory - 128 M bytes (16-bit linear equivalent) Standard Waveforms - 1,480
Effects	Multi-Effects - 3 systems, 78 types Chorus - 3 types Reverb - 5 types Input Effects - 6 types Mastering Effects - 3-band comp
Sampling Section	Data Format - 16-bit linear (.WAV/.AIFF) Frequency - 44.1 kHz (fixed) Maximum Time - Standard (32 MB) mono - 360 sec. approx. stereo - 180 sec. approx When expanded with DIMM (544 MB) mono - 102 min. approx., stereo - 51
Sequencer Tracks	Phrase tracks (16 MIDI channels per track) - 16 Pattern track (16 MIDI channels per track) - 1 Audio Track - 8 stereo Tempo track - 1 Beat track - 1 * The Pattern Track can hold up to 100 patterns.
Others	Arpeggiator - Preset - 128, User - 128 Rhythm Pattern - Preset - 256 (32 groups), User - 256 (32 groups) Chord Memory - Preset - 64, User - 64 Display - Graphic 320 x 240 dots backlit LCD (Color), Dynamic Pads - 16 pads
Controllers	Pitch Bend/Modulation Lever Control Knob x 4 Assignable Switch x 2 D Beam Controller
Connectors	Headphones Jack A (MIX) Output Jacks (L/MONO, R) - 1/4 inch TRS phone type B Output Jacks (L, R) - 1/4 inch phone type Input Jacks (L/MONO/MIC, R) - 1/4 inch phone type [X6/X7/X8] Hold Pedal Jack (Half Pedal recognition)
	[X6/X7/X8] Control Pedal Jack (assignable) MIDI Connectors (IN, OUT, THRU) USB Connector (supports file transfer (mass storage class) and MIDI) Digital Audio Interface (COAXIAL INPUT/OUTPUT) AC Inlet

Keyboard

76 keys (with velocity and channel aftertouch)

Sound Generator Section

Maximum Polyphony - 128 voices
Multitimbral Parts - 16 Parts
Standard Wave Memory - 128 M bytes (16-bit linear equivalent)
Standard Waveforms - 1,480

Effects

Multi-Effects - 3 systems, 78 types
Chorus - 3 types
Reverb - 5 types
Input Effects - 6 types
Mastering Effects - 3-band comp

Sampling Section

Data Format - 16-bit linear (.WAV/.AIFF)
Frequency - 44.1 kHz (fixed)
Maximum Time - Standard (32 MB)
mono - 360 sec. approx.
stereo - 180 sec. approx
When expanded with DIMM (544 MB)
mono - 102 min. approx., stereo - 51

Sequencer Tracks

Phrase tracks (16 MIDI channels per track) - 16
Pattern track (16 MIDI channels per track) - 1
Audio Track - 8 stereo
Tempo track - 1
Beat track - 1
* The Pattern Track can hold up to 100 patterns.

Others

Arpeggiator - Preset - 128, User - 128
Rhythm Pattern - Preset - 256 (32 groups), User - 256 (32 groups)
Chord Memory - Preset - 64, User - 64
Display - Graphic 320 x 240 dots backlit LCD (Color),
Dynamic Pads - 16 pads

Controllers

Pitch Bend/Modulation Lever
Control Knob x 4
Assignable Switch x 2
D Beam Controller

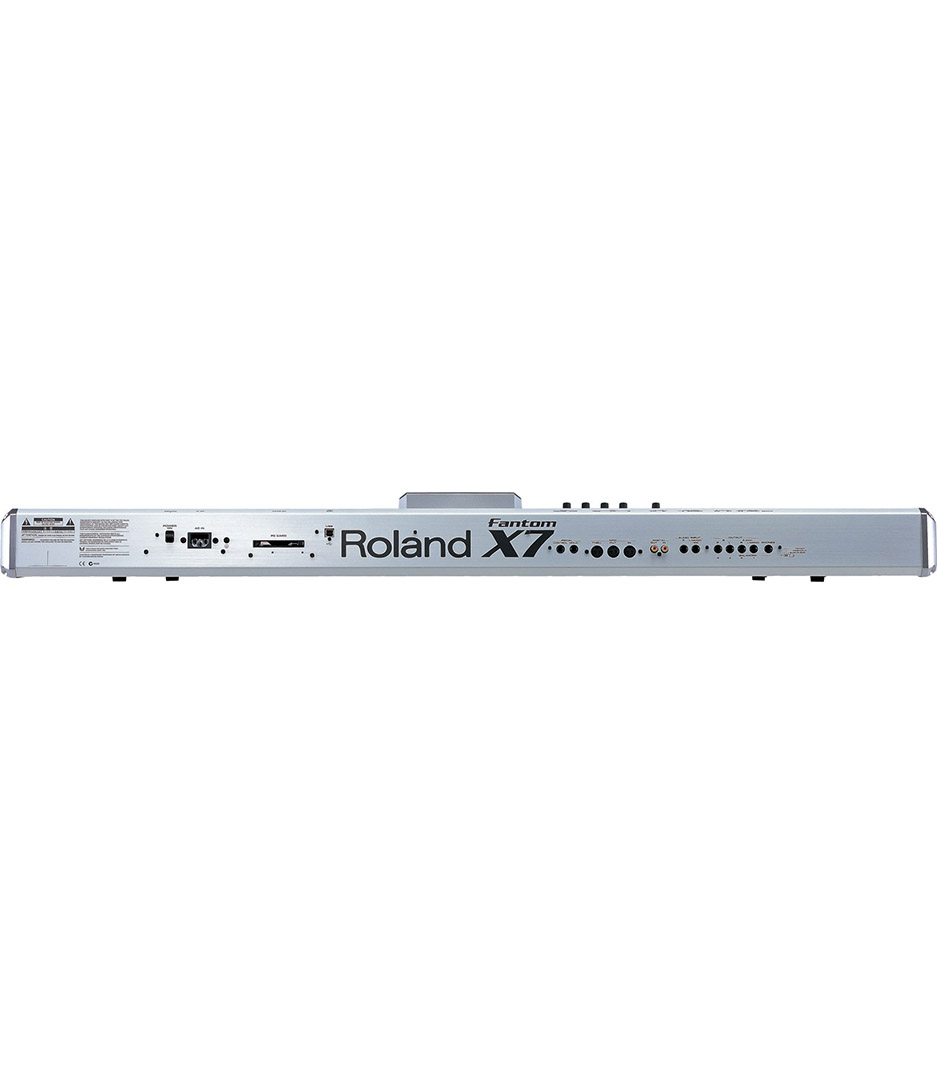

Connectors

Headphones Jack
A (MIX) Output Jacks (L/MONO, R) - 1/4 inch TRS phone type
B Output Jacks (L, R) - 1/4 inch phone type
Input Jacks (L/MONO/MIC, R) - 1/4 inch phone type
[X6/X7/X8] Hold Pedal Jack (Half Pedal recognition)

[X6/X7/X8] Control Pedal Jack (assignable)
MIDI Connectors (IN, OUT, THRU)
USB Connector (supports file transfer (mass storage class) and MIDI)
Digital Audio Interface (COAXIAL INPUT/OUTPUT)
AC Inlet
