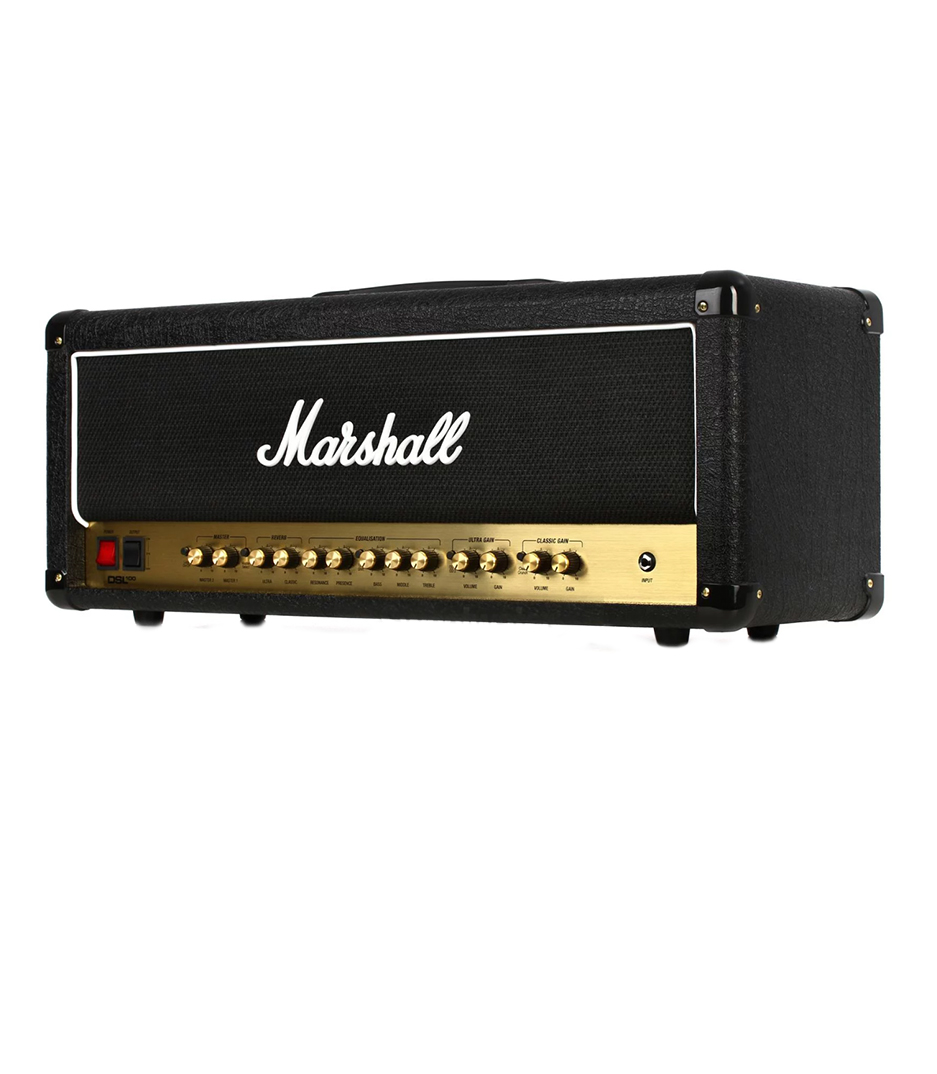

Marshall DSL100HR
Guitar Amplifier, All tube, 100W
The Marshall DSL100HR is a 100-watt all-tube head. With four 12AX7 (ECC83) tubes in the preamp and four EL34 tubes in power section, expect clear, rounded clean tones, and of course, roaring and screaming rock distortion as we all know it. Speaking of distortion, you have three gain modes to choose from: Crunch Mode for good ol' rock n' roll, OD1 for arena rock, and (OD2) for that saturated heavy metal sound.
- Brand
- Category
- Model
Find Alternatives
Specification
| Type | Head |
| Wattage | 100 / 50 watts (switchable) |
| Channels | 2 (Classic and Ultra), each with 2 modes |
| Tubes | 4 x ECC83 (preamp), 4 x EL34 (power amp) |
| Controls | Loop On/Off, Master Volume 2, Master Volume 1, Master Select, Reverb x 2 (for Ultra and Classic), Resonance, Presence, Tone Shift, Bass, Middle, Treble, OD1/OD2 switch, Volume & Gain (Ultra), Volume & Gain (Classic), Clean/Crunch switch |
| Output Impedance | 4, 8, and 16 ohms |
| Effects Loop | Yes |

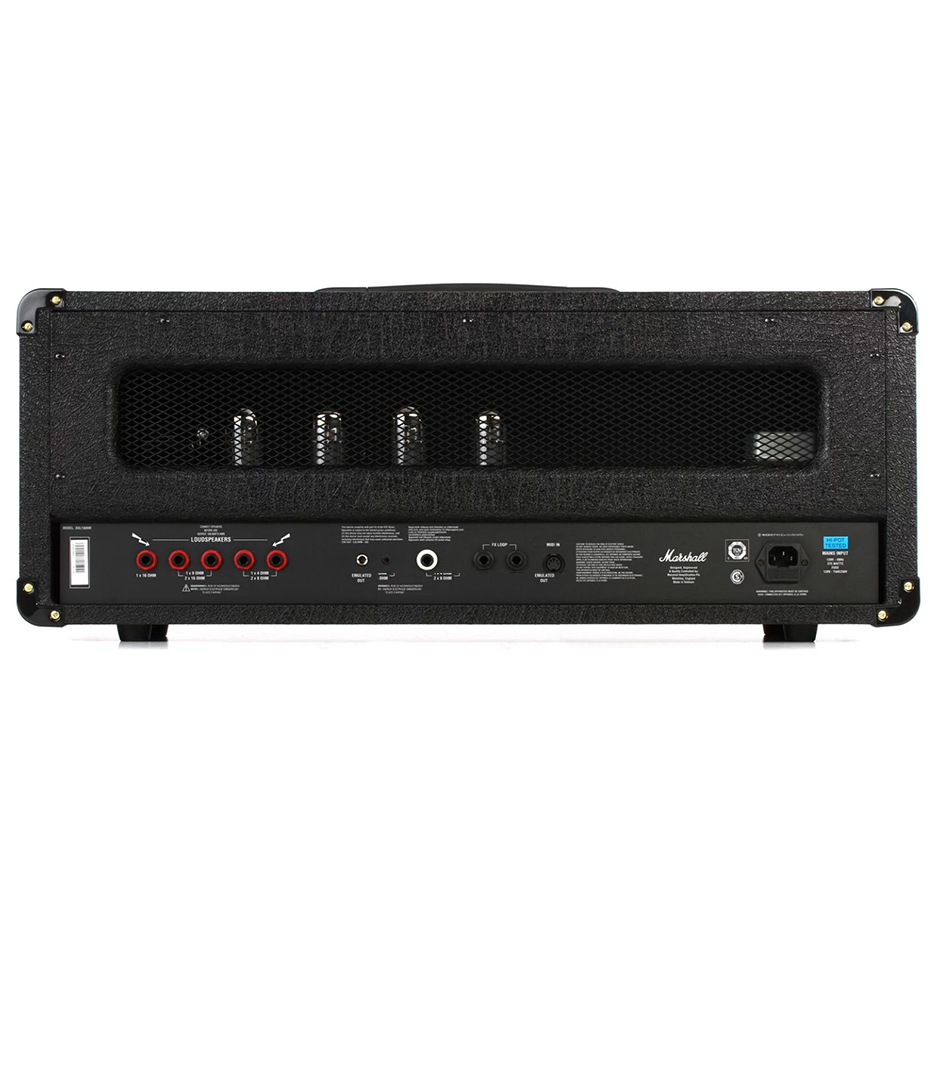

| Inputs | Guitar input (1/4"), Audio input (1/8"), MIDI in, Footswitch in |
| Outputs | 1/4" Speaker Outs (1 x 16 ohms, 1 x 8 / 2 x 16 ohms, 1 x 4 ohms / 2 x 8 ohms), 1/4" Emulated Line Out |
