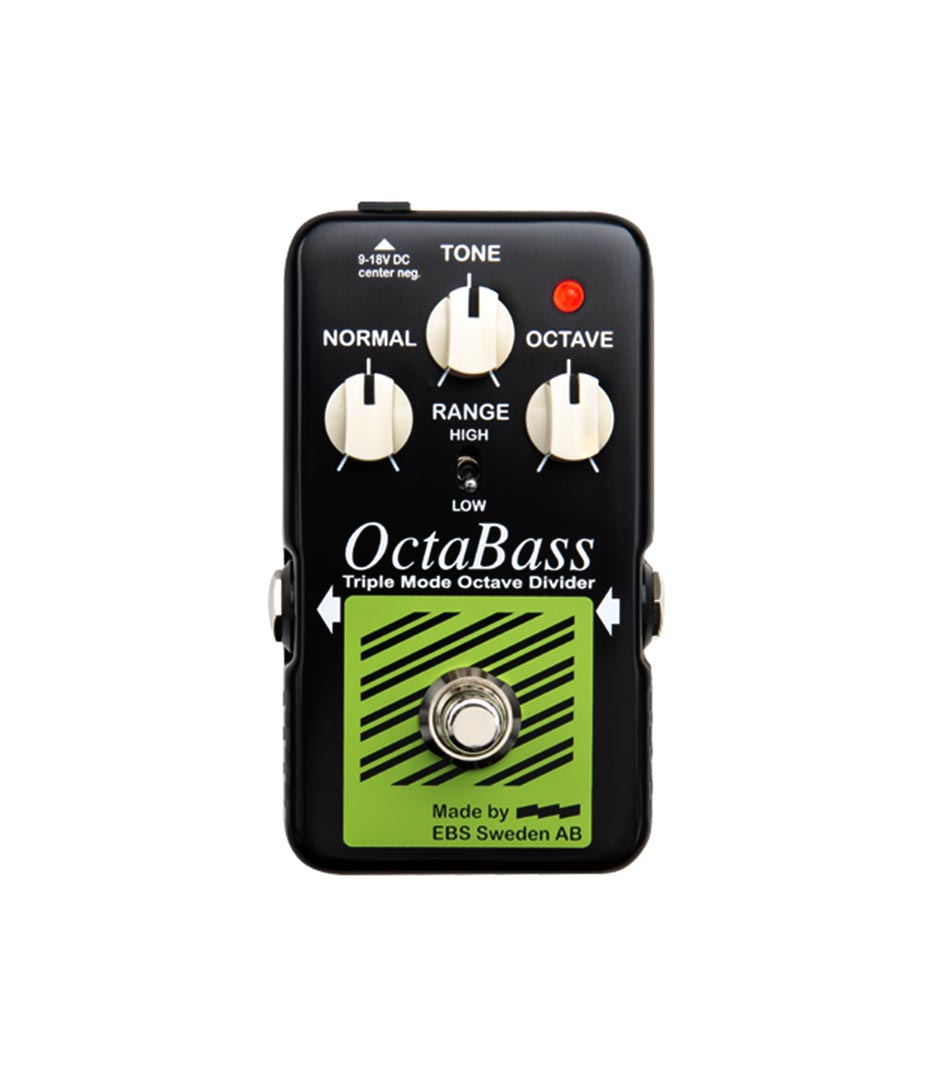

EBS OctaBass Blue Label
The EBS OctaBass Blue Label pushes the boundaries for what has been seen as possible with an analog octave effect. The quality and character of the octave tone, as well as the precision and speed of the tracking, are outstanding.
- Brand
- Category
- Model
Specification
| Nominal Input Level | -10 dBv |
| Input Impedance | 1.8 Mohms |
| Output Impedance | 100 ohms |
| Dry Bandwidth +0/-2 dB | 20 - 20k Hz |
| Dry Level min/max | -oo / 0 dB |
| Octaver Level Gain min/max | -oo / 12 dB min |
| Octaver Tone Filter | Type Low Pass Slope >18 dB/octave Range 60 - 350 Hz |
| Triggering Threshold | -70 dBv @200 Hz |
| Type | Analog Effect, Relay type Switching |
