Aguilar DB 751
The DB 751 combines the legendary tube-driven tone of the DB 750 with greater EQ control. A perfect combination of raw power and excellent tone, the DB 751 continues the legacy set by the world famous DB 750. Delivering 975 Watts at 2 ohms and 750 Watts at 4 ohms, this amp has the headroom you need to play any size venue.
- Brand
- Category
- Model
Find Alternatives
Specification
| Power Output | 975 watts @ 2 ohms, 750 watts @ 4 ohms, 400 watts @ 8 ohms |
| Transformer | Custom Aguilar toroidal power transformer |
| EQ Section | Passive tone stack with active midrange element, Bass +12 / -12 @ 40Hz, Midrange +12 / -12 @ 750Hz, Treble +12 / -7 @ 4kHz |
| Deep Switch | Adds 5 dB of broadband boost at 30 Hz |
| Bright Switch | Adds 5 dB of broadband boost at 5-7 kHz |
| Effects Loop | Send is push/pull for line or instrument level; Return is push/pull for parallel or series operation |
| Inputs | One 1/4 |

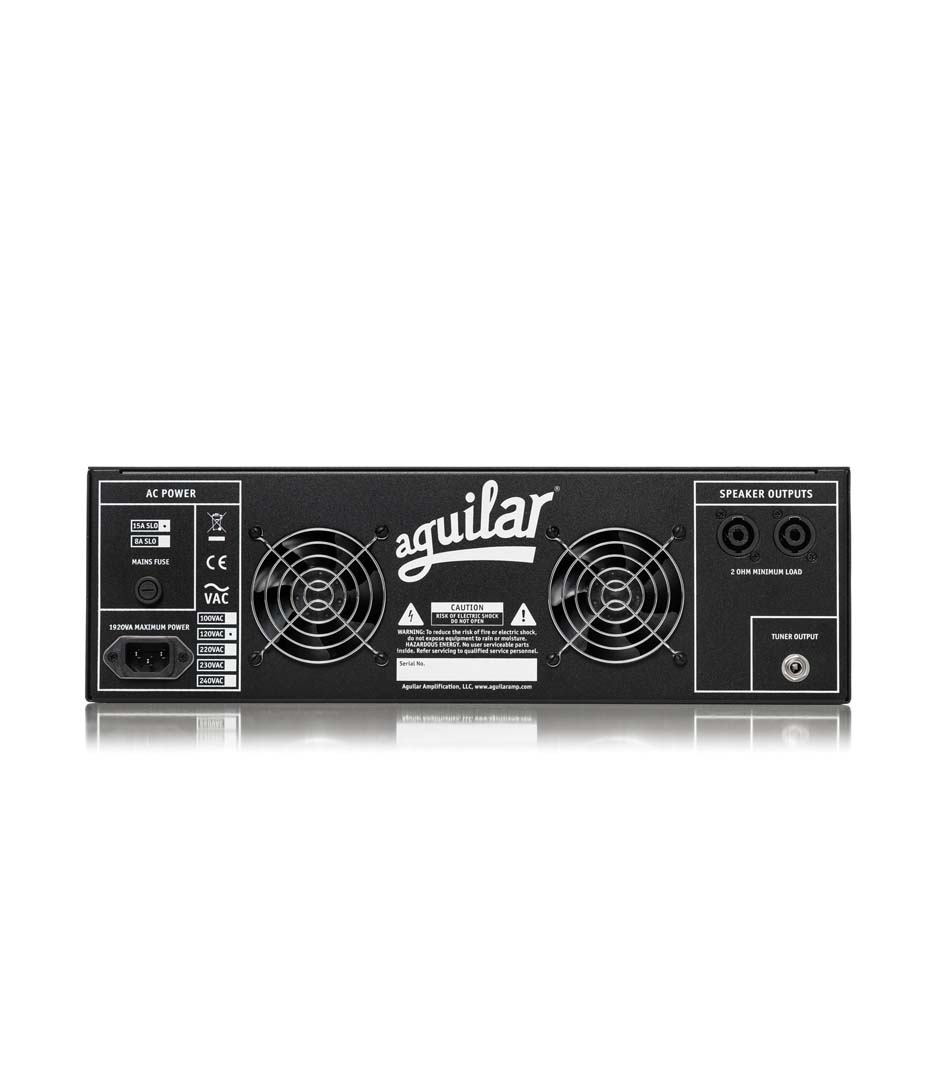

| Outputs | Two Neutrik Speakon speaker outputs, Jensen XLR balanced output (with pre/post EQ and ground lift switch) and Tuner out. |
