Yamaha Motif XF 8

Soon after the original MOTIF was released in 2001 it was recognized as the best sounding, top selling and most requested music workstation on the market. Over time, it has continued to evolve and improve its expressiveness and functionality. At the same time, the online community of end users, sound programmers, software developers and product support specialists at yamahasynth.com has expanded into a vibrant on line music production community. The MOTIF breathes new life into live performances with its expressive sounds and intuitive control. In music creation, the MOTIF not only offers its own music creation capabilities, it also offers a system for integrating those capabilities with a variety of software applications. And now, the next generation "XF" builds on the decade long heritage of MOTIF, and provides groundbreaking with Flash memory expansion capabilities that will set a new standard for keyboard workstations for years to come.

Brand
Category
Model

Keys, Workstations
Motif XF-8

Find Alternatives

Roland FA 08

Roland Fantom G8

Roland Fantom X8

Korg Kronos 2 88

Korg Kronos X 88

Korg M3 88

Korg Triton Extreme 88

Korg Triton Studio 88

Specification

Keyboard	88 keys, Balanced Hammer Effect Keyboard (Initial Touch/Aftertouch)
Sampling Block	Samples-Up to 128 Waveforms.Up to 256 Key Banks per Waveform.Up to 512 Key Banks Sampling Sources- Analog input L/R, Stereo output (Resampling) FW Sampling Frequency- 44.1kHz, 22.05kHz, 11.025kHz, 5.5125kHz
Tone Generator Block	Tone Generator-AWM2, with Expanded Articulation Polyphony-128 notes Multi Timbral Capacity-16 Parts (internal) Audio Input Parts (A/D, FW), 1 stereo Part Wave-741 MB (when converted to 16-bit linear format), 3,977 waveform
Sequencer Block	Maximum Polyphony-124 notes Tracks- Pattern- 16 Phrase tracks User Phrases- 256 per Pattern Songs- 64 Songs Mixing Voices Arpeggio- Preset- 7,881 types User- 256 types
Controllers	Pitch Bend wheel, Modulation wheel, Ribbon Controller, Assignable Control Sliders x 8, Assignable Knobs x 8, Assignable Function buttons x 2, Data dial

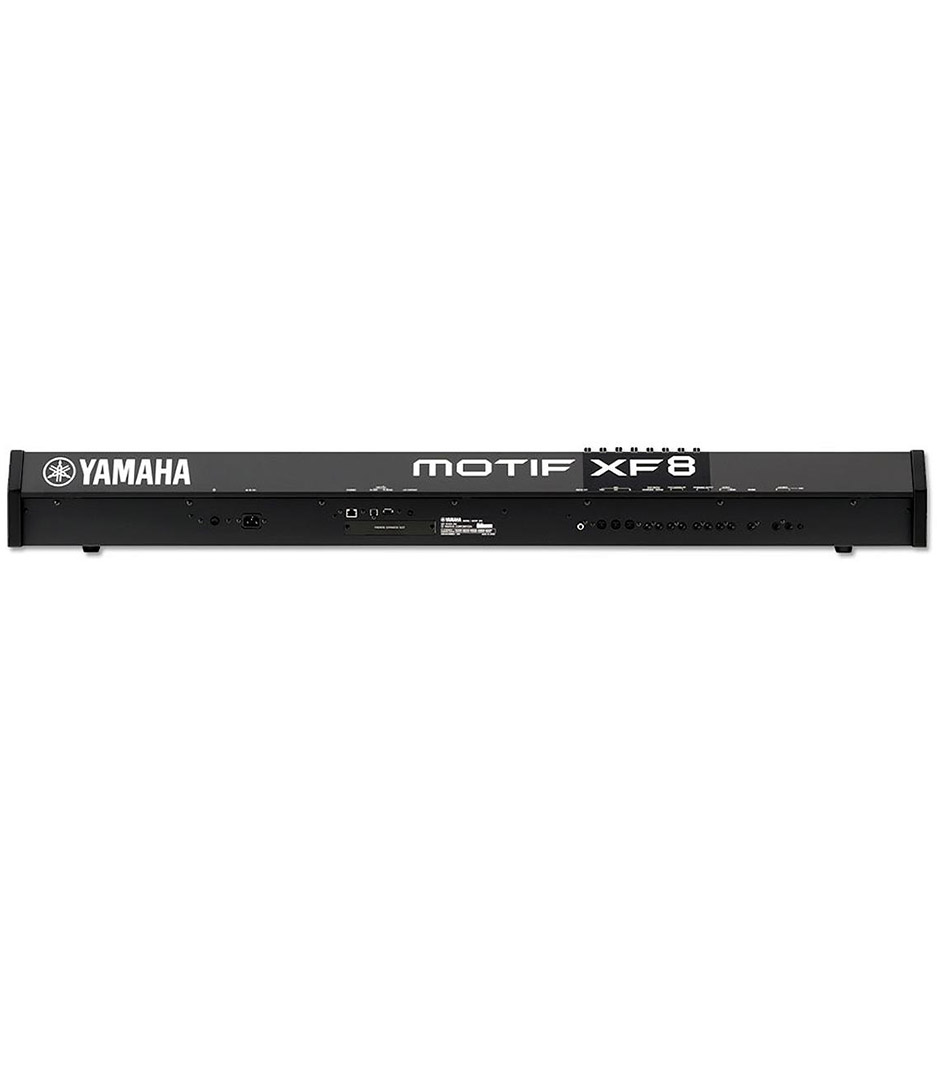

Connectors	OUTPUT L/MONO, R (standard phone jack), ASSIGNABLE OUTPUT L, R (standard phone jack), A/D INPUT L, R (standard phone jack), DIGITAL OUT,PHONES (standard stereo phone jack),FOOT CONTROLLER 1, 2, FOOT SWITCH x 2 (SUSTAIN, ASSIGNABLE), MIDI IN/OUT
