Roland Alpha Juno 2
The Roland Alpha Juno 2 is an analog polyphonic synthesizer manufactured in 1986. It features one Alpha Dial that controls multiple parameters, as well as MIDI In, Out, and Thru functionality. It is well know for its use of digitally controlled oscillators in conjunction with analog filters. The Alpha Juno 2 added an extended velocity-sensitive 61-key keyboard and a slot for an external memory card.
- Brand
- Category
- Model
Find Alternatives
Specification
| Keyboard | 61 velocity keys with aftertouch |
| Functions | LCD display, 39 buttons and a jog wheel. On the left side a joystick that acts as both pitch bender and modulation functions |
| Voice | Main CPU Intel 8032AH manages 6 voices polyphony |
| Playmode functions | Octave transpose keyboard portamento glide chord mode learn (it outputs Midi) bender range 1 octave setting key transpose 15 aftertouch levels assignable to VCF / DCO / VCA |
| Filter Multimode | VCF based on 6 IC X IR3R05 (also VCA) lowpass at -24dB/Oct /resonance (it does not auto-oscillate) highpass- only 4 preset values. VCF system provides keytracking system scaled to 15 values |
| Memory | 64 ROM presets 64 RAM slots + 64 others if optional cartridge m64c is fitted. Sounds can be saved to magnetic tape or Midi exclusives data dump. |
| MIDI | Some basic CC# are managed including- modulation, foot control, portamento time and hold |
| Effect Section | features an analog stereo chorus based on 2 X MN3101 + 2X MN3009 IC like Juno-60 or Jx-3p with adjustable rate |

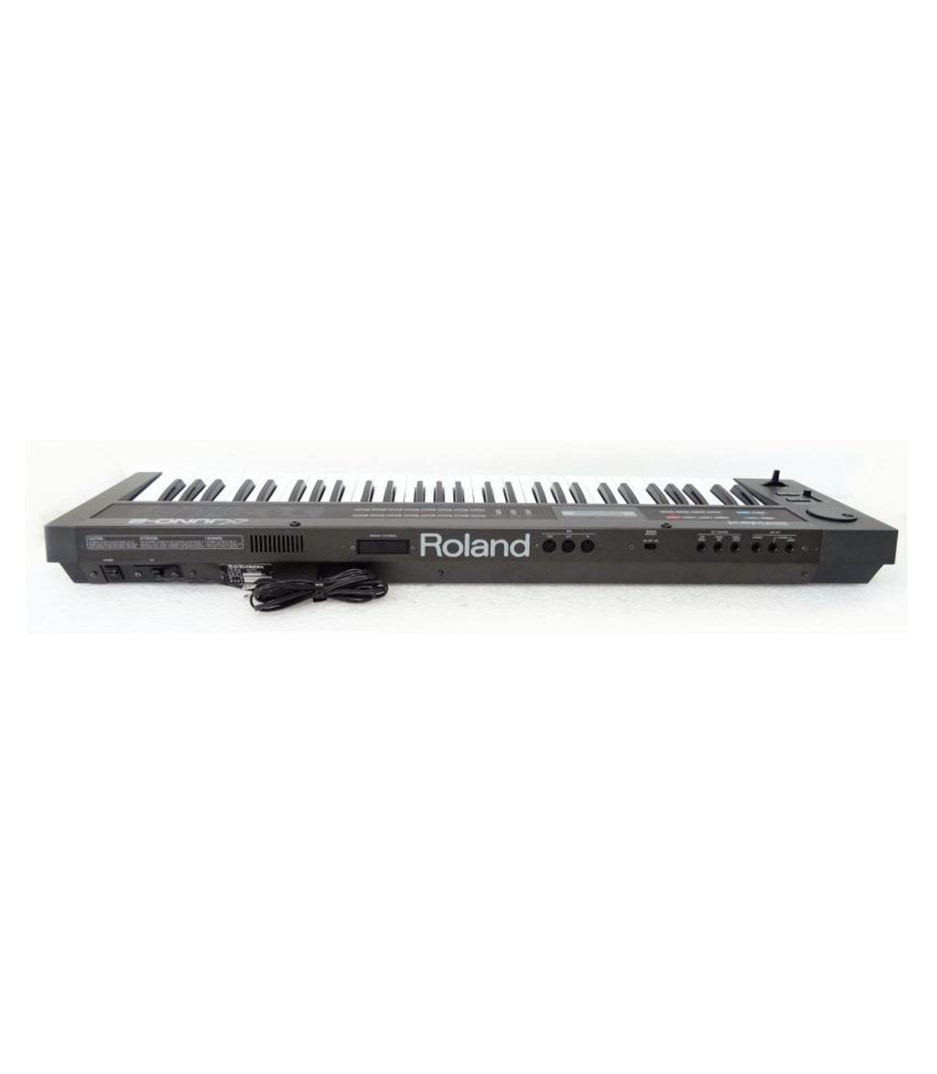

| Connectors | Midi interface tape interface main out headphones out expression pedal (assignable) |
