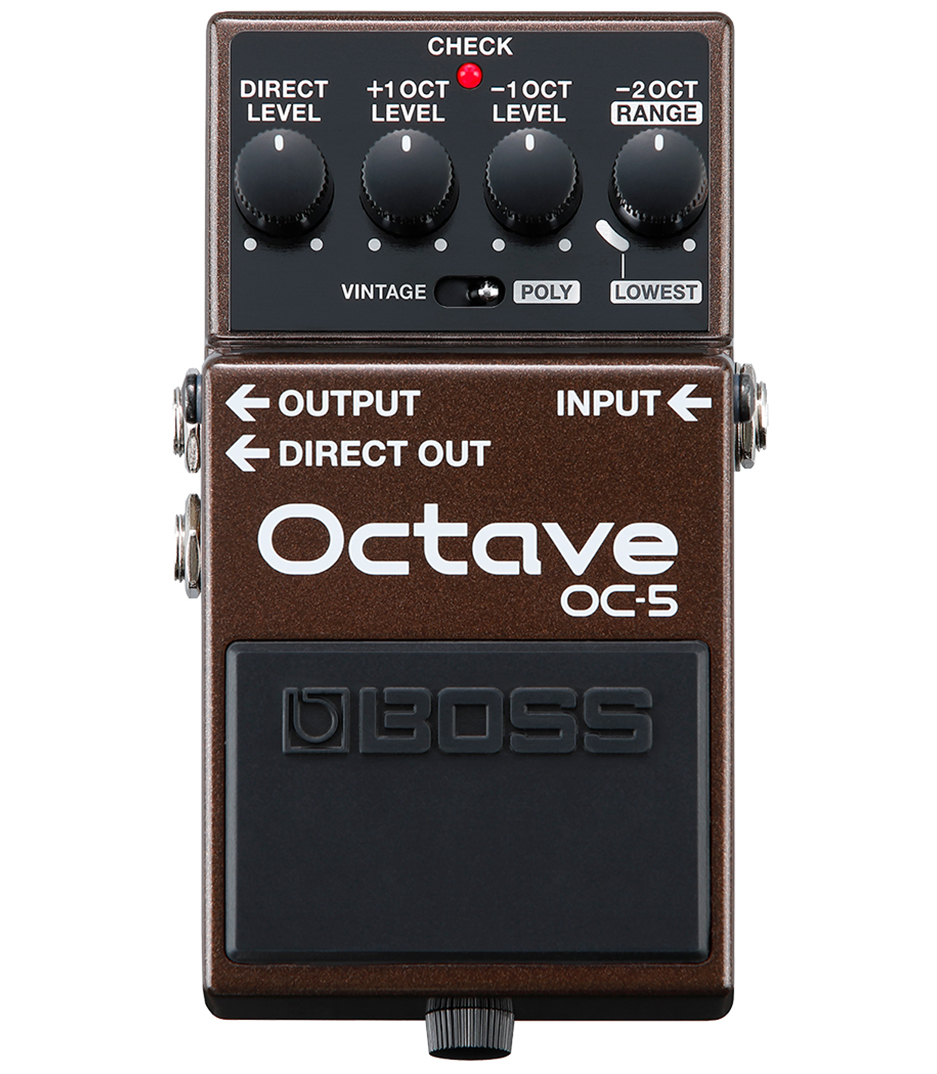

Boss OC-5 Octave Pedal

Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.

  • Brand
  • Category
  • Model
  • Guitars , Footswitches
  • OC-5

Specification

Nominal I/O level Input -20 dBu, Output -20 dBu
I/O Impedance Input 1M ohm, Output 1k ohm
Recommended Load Impedance 10k ohms or greater
Bypass Buffered bypass
Controls Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob
Indicator CHECK indicator (Serves also as battery check indicator)
Connectors INPUT jack; 1/4-inch phone type OUTPUT jack; 1/4-inch phone type DIRECT OUT jack; 1/4-inch phone type DC IN jack
Power Supply Alkaline battery (9 V, 6LR61 or 6LF22) AC adaptor
Current Draw 60 mA
